Inclined Screens
Inclined Screens can be used for dry and coarse materials where gravity helps to move the material down the screen deck.

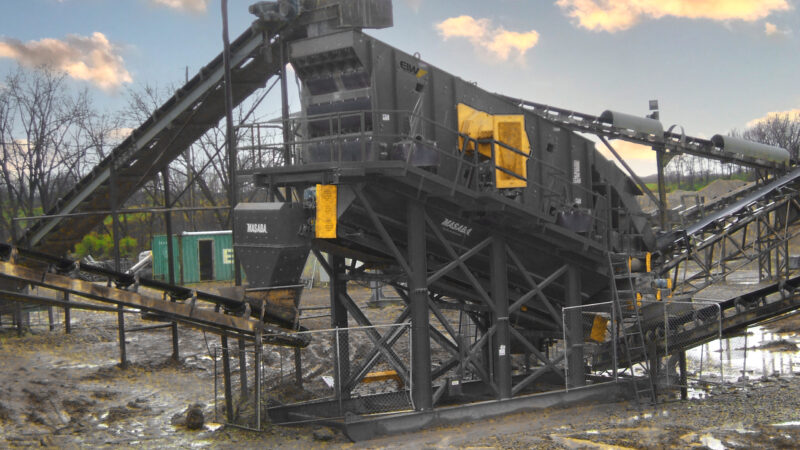

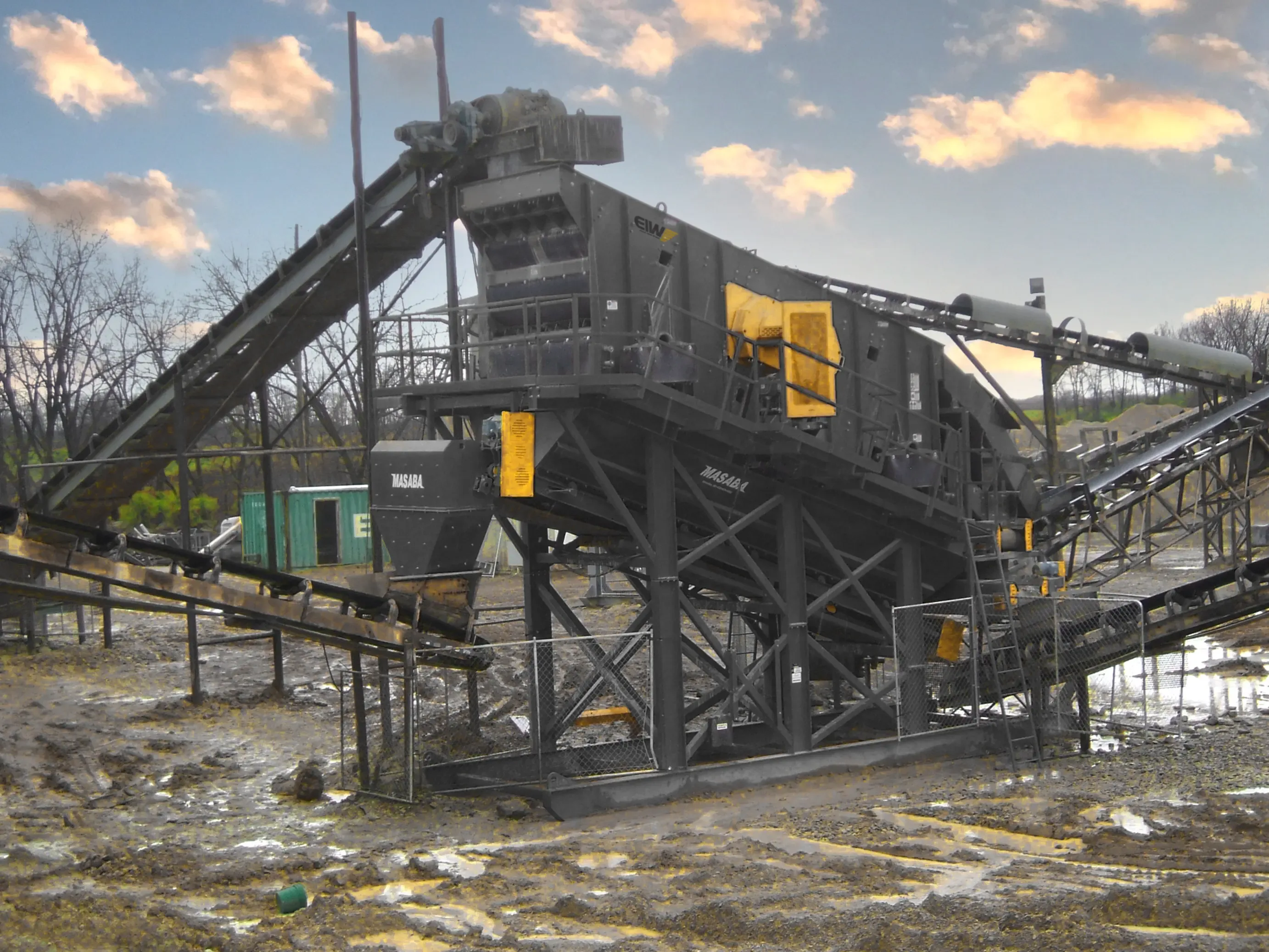

EIW Inclined Screens are designed for heavy-duty applications in the aggregates, frac sand and mining industries. These rugged screens provide reliable performance and durability under demanding conditions.
How Inclined Screens Work
EIW Inclined Screens are built with high-strength side plates and fully bolted connections to withstand heavy loads. The two- and four-bearing circle-throw mechanism generates circular motion via a counterweighted shaft, promoting efficient material stratification and precise separation.
EIW Inclined Screens are used to separate and size materials at different stages of processing. Scalping screens remove fines, protecting crushers from excessive wear, while multi-deck configurations sort materials into specific sizes for further processing or stockpiling.
Product Features
- Side plates made from A572 Grade 50 steel deliver 45% higher yield strength than A36 steel plating
- Fully bolted construction eliminates stress fractures and simplifies repairs
- Available sizes range from 5’ x 16’ (1.5 m x 4.8 m) to 8’ x 20’ (2.4 m x 6.1 m) to accommodate various operational requirements
- Designed to integrate seamlessly into existing systems without requiring modifications
- Short cross members with machined shims allow straightforward installation in confined spaces
- Shaft components on the eccentric mechanism slide directly onto the shaft for easy parts installation and replacement
- Jacking screws simplify belt tensioning for precise adjustments
- Modular cross members ensure quick replacements and reduce maintenance time
Download the Inclined Screens Brochure
To learn more about Eagle Iron Works' Inclined Screens, including sizes and capacities, download the brochure.
