Horizontal Screens

Horizontal Screens can be used for high volume applications particularly wet and sticky materials.

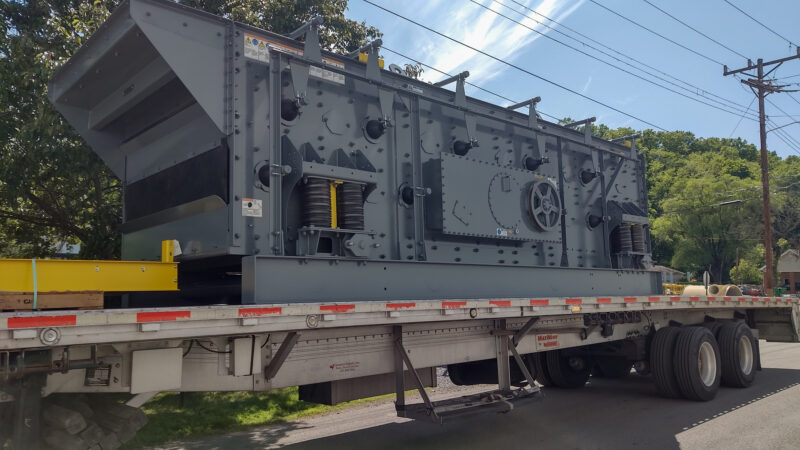

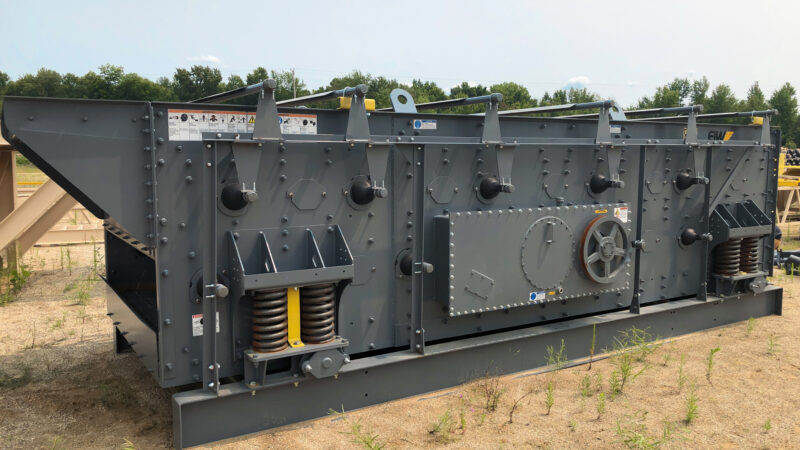

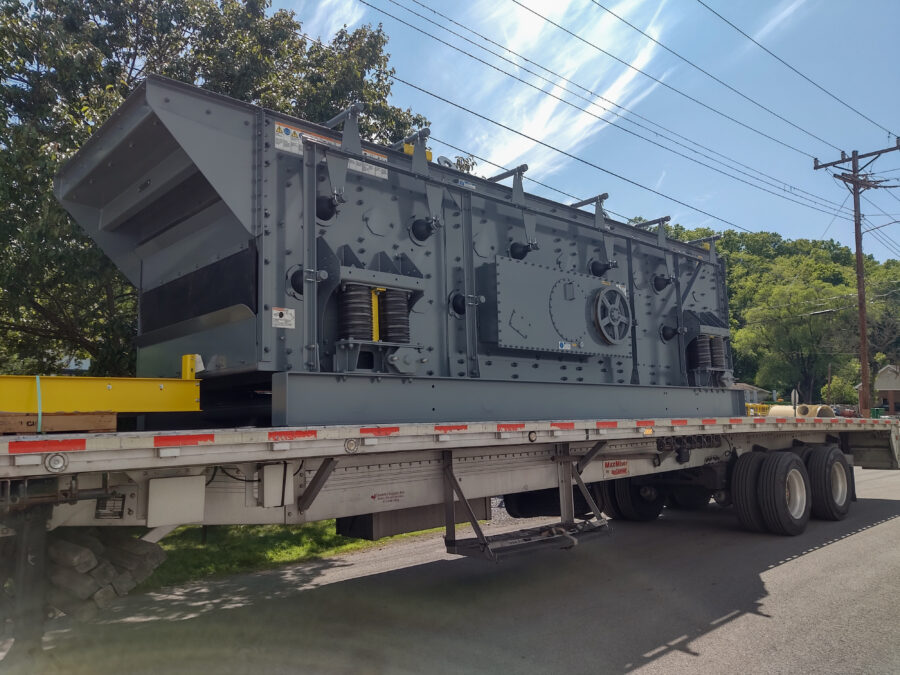

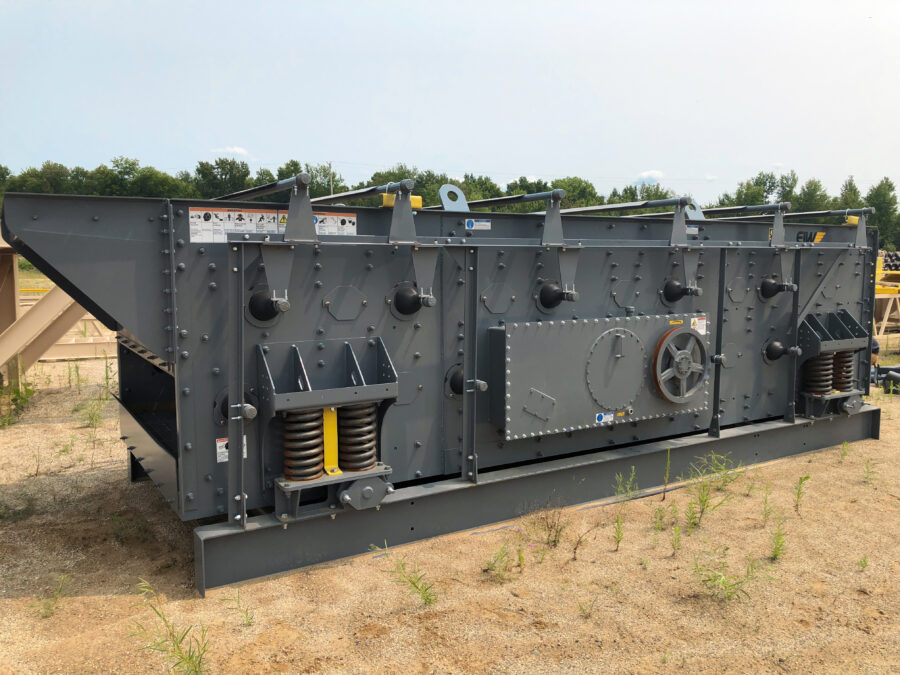

EIW Horizontal Screens provide efficient material separation and precise particle sizing with a low-profile design that is ideal for portable plants and stationary installations where height is limited. These screens deliver reliable performance in space-constrained operations.

left
right

How Horizontal Screens Work

Equipped with a triple-shaft mechanism, EIW Horizontal Screens produce an adjustable oval stroke ranging from 30 to 60 degrees, generating the high G-forces needed for effective material stratification and precise particle separation. This design improves screening efficiency and ensures dependable operation across a variety of applications.

The stroke length, speed and amplitude are adjustable, allowing operators to optimize the screen’s performance for specific feed conditions.

This flexibility makes EIW Horizontal Screens well-suited for handling different material types and separation requirements. The aggressive oval stroke minimizes plugging and blinding of the screen media, ensuring continuous operation and maintaining screening performance.

Product Features

  • Grade 50 side plates provide twice the strength of standard steel
  • Computer-optimized decks with full-length bracing support heavy loads

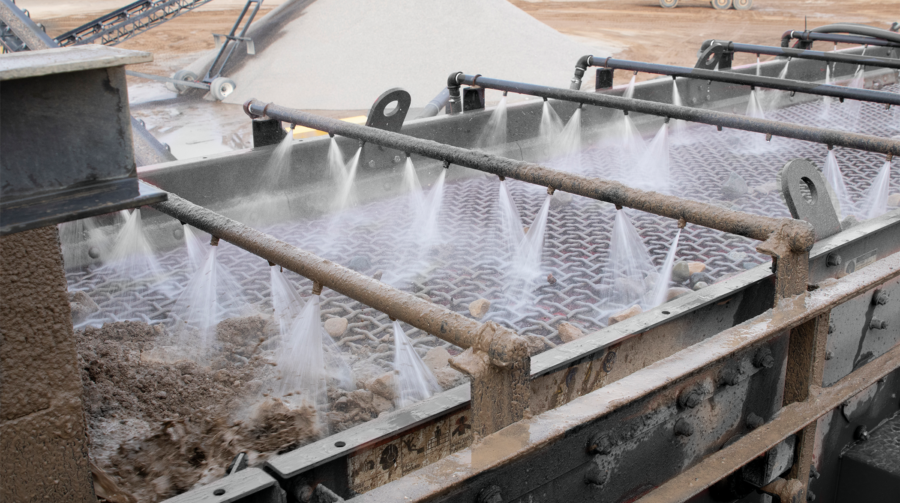

  • Quick knockouts allow easy adaptation for wet screening applications
  • Rubber snubbers are simple to use and maintain
  • Triple-shaft mechanisms generate high G-forces with adjustable oval strokes from 30 to 60°
  • Adjustable stroke, speed and amplitude fine-tune performance for various materials
  • Available configurations accommodate a variety of material separation needs across multiple industries
  • Low-profile design fits height-restricted plants and portable installations

Download the Horizontal Screen Brochure

To learn more about Eagle Iron Works' Horizontal Screens, including sizes and capacities, download the brochure.
